VE7GDH TNC-X








TNC-X

The TNC-X was developed by John Hansen W2FS. It is a very reasonably priced KISS-mode only TNC. It can be connected by the standard RS-232 port or by the optional USB port which can also power the TNC-X. There are add-on daughter-boards for turning it into a tracker or digipeater.


Assembled TNC-X

Completed TNC-X ready for the sockets to be populated.


Completed TNC-X with USB Chip installed.

Completed TNC-X with hardwired cable connected. The optional USB chip is installed.


rear view of completed TNC-X

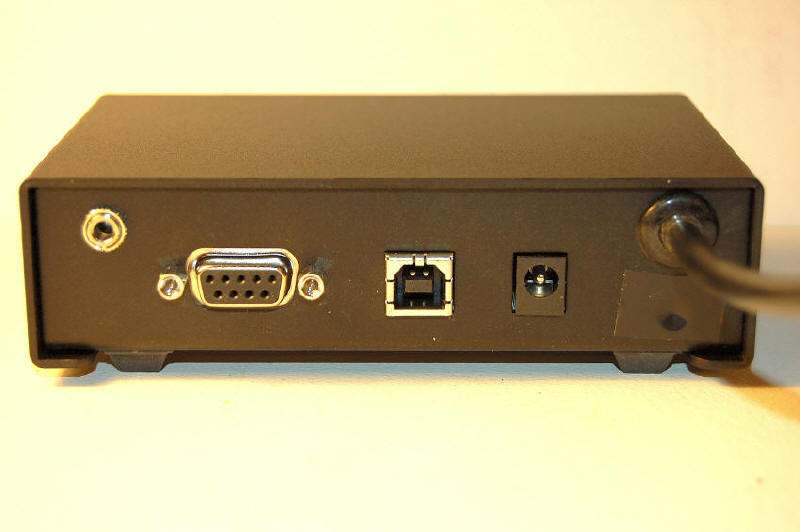

Rear view of completed TNC-X.


TNC-X in Case

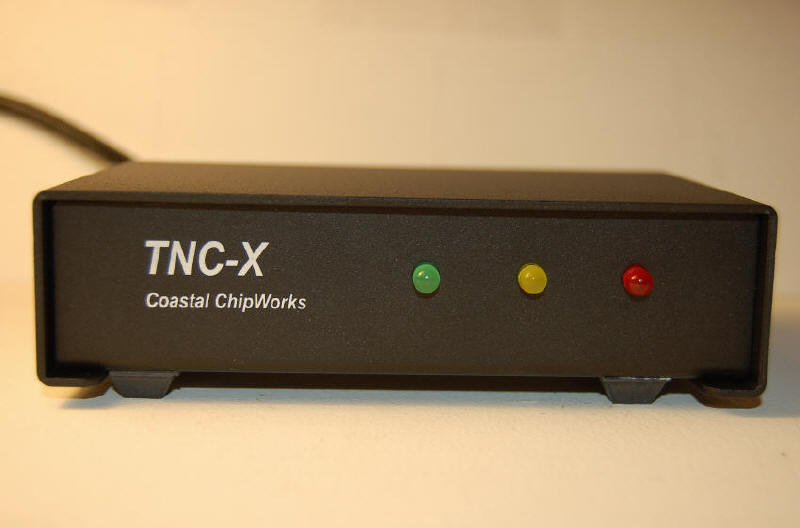

Completed TNC-X - width is the same as a KPC-3+.
